STL to STEP: When to Convert and When to Rebuild as CAD

The Quick Answer

What an STL File Actually Contains

An STL file describes a shape as a surface made of triangles, and nothing more. There are no holes, flat faces, fillets or dimensions in it, only the triangles that approximate them. It does not even record units, which is why CAD software asks whether you mean millimetres or inches when you import one.

A STEP file can hold true geometry: planes, cylinders, fillets and the edges where they meet. But it only holds that geometry if someone builds it. Convert an STL straight to STEP and you get the triangles again, now stored as thousands of tiny flat faces.

When a Quick Conversion Is Enough

If you only need the shape, a direct conversion is quick and perfectly good:

• Viewing and sharing. Showing a part to a colleague, customer or supplier who works in STEP.
• 3D printing. Printers work from meshes anyway, so the STL itself is usually all you need.
• Rough fit checks. Placing the part in an assembly to check clearance or how it sits against its neighbours.
• A visual reference. Modelling a new part around an existing one, where the old part only needs to be in the right place.

When a Conversion Is Not Enough

The trouble starts as soon as the model has to do more than look right:

• Editing features. A hole in a converted file is a ring of facets, not a hole. You cannot change its diameter, move it or add a thread.
• Manufacturing. Machining needs true faces and edges. "Flat" faces in a converted file are only as flat as the triangles that make them up.
• Tolerances and inspection. There is no true diameter, axis or datum to dimension from, so drawings and inspection plans have nothing to reference.
• Design changes. If the next revision needs a longer flange or a different bolt pattern, there is no feature to change, and the part ends up being modelled anyway.
• Heavy files. Every triangle becomes a face, so a detailed mesh can turn into a STEP file that slows down every assembly it goes into.

Our scan to CAD best practices guide describes the same problem from the modelling side: parts auto-surfaced from a mesh, where the holes are surface patches rather than real holes and the downstream team cannot use the result.

STL to SOLIDWORKS: The Honest Options

SOLIDWORKS can open an STL file directly. In its import options you choose how the mesh comes in, and each choice has limits:

• Graphics body. The lightest option. You can see the part and use it as a visual reference, but you cannot edit it or build features from it.
• Solid body. Each triangle becomes a face of a faceted solid. You can add new features to it, but the original geometry stays faceted: no real holes, no editable dimensions, and large meshes become slow to work with.
• Surface body. The same faceted faces, as surfaces instead of a solid, with the same limits.

All three are a converted mesh, not a model. They are useful for viewing, fit checks and reference geometry. For anything you need to edit or manufacture, the part has to be rebuilt.

The Better Path: Rebuild It as Parametric CAD

Rebuilding means using the mesh as a guide and modelling the part properly: real planes, cylinders, fillets and sketches, built in a feature tree you can edit. Two Geomagic tools are made for exactly this.

Geomagic Design X: full reverse engineering

Geomagic Design X turns point clouds and mesh data into fully editable parametric models, not dumb solids. You extract the true geometry from the mesh and build the model with a feature history. LiveTransfer then sends it into SOLIDWORKS, Siemens NX, PTC Creo, Inventor or AutoCAD, or you export a clean STEP file for any other system.

Geomagic for SOLIDWORKS: work inside SOLIDWORKS

If your team models only in SOLIDWORKS, Geomagic for SOLIDWORKS works inside it as a plug-in. Its fitting wizards turn regions of the mesh into native SOLIDWORKS features, so the result is a SOLIDWORKS part your team can edit like any other.

Or have us rebuild it

If you would rather not do the modelling yourself, our scan to CAD service rebuilds the part from your STL or scan and delivers clean STEP and IGES files, checked against the mesh with a colour deviation map. For parts that are partly free-form, we can surface the organic areas and model the holes and flat faces as true geometry, all in one STEP file.

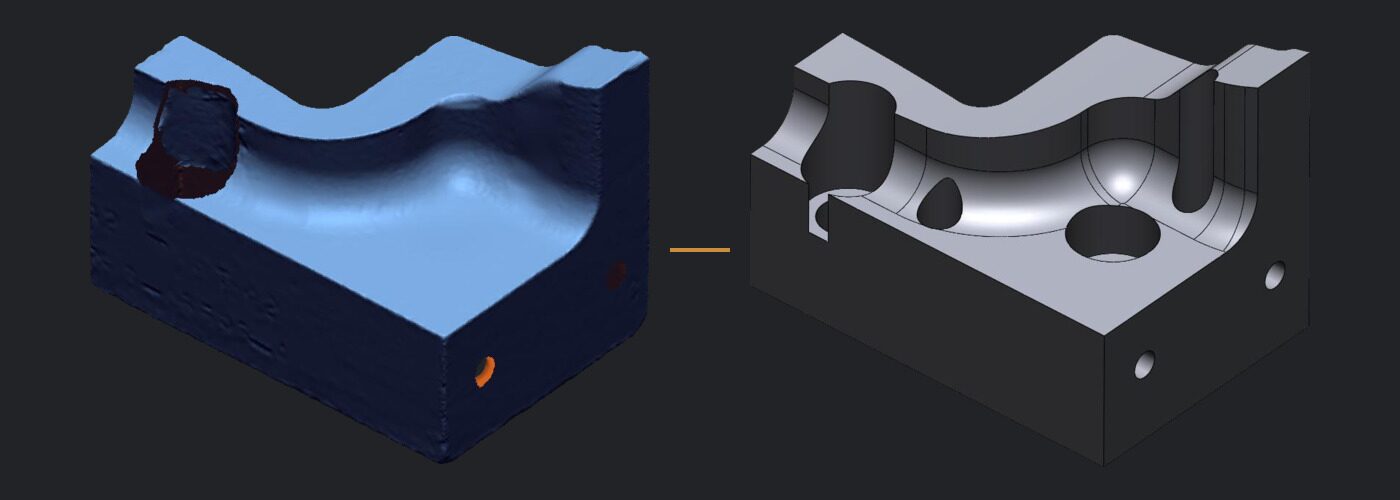

Example: A Die Section With Too Many Surface Patches

A straight mesh-to-STEP conversion of a die section produced far too many surface patches, so there were no clean faces or holes to work with. We rebuilt it with full reverse engineering in Geomagic Design X, modelling its faces, holes and edges as true geometry rather than patches.

Frequently Asked Questions

Can I convert STL to STEP for free?

Yes, plenty of tools will do the conversion. The STEP file you get is still a faceted solid, though, so it is fine for viewing or printing but not for editing features or manufacturing.

Will converting STL to STEP make it editable in SOLIDWORKS?

Not really. SOLIDWORKS will open it as a faceted solid or surface body, and you can add new features to it, but you cannot edit the original holes, faces or dimensions. For editable features, rebuild the part in Design X or Geomagic for SOLIDWORKS.

Why is my converted STEP file so large?

Every triangle in the mesh becomes a face in the STEP file. A detailed mesh can have hundreds of thousands of triangles, so the STEP file ends up heavy and slow to work with.

How accurate is a model rebuilt from an STL?

An as-built model follows the mesh within the accuracy of the mesh itself. A design-intent model squares up worn or warped features to the clean geometry they were meant to have. When we do the rebuild, we check the finished model against the mesh with a colour deviation map.

What does it cost to rebuild an STL as CAD?

It depends on the part's size and complexity and how many features need modelling. Send us the file and we will reply with a quote within one business day.
